Chain Maille ... No Longer Just For Knights

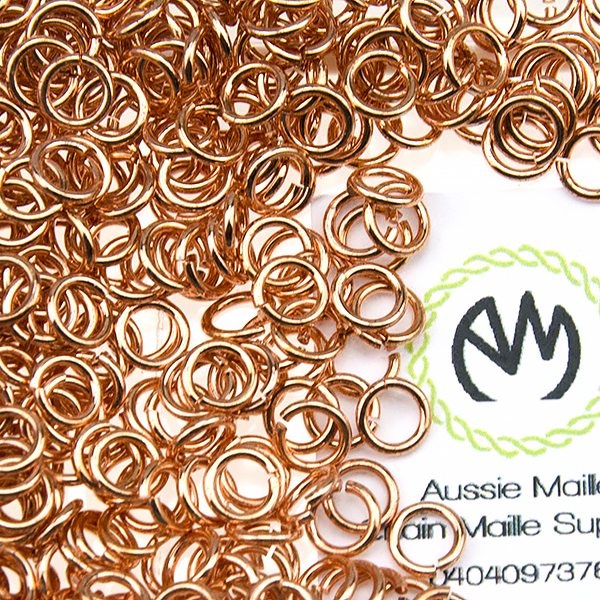

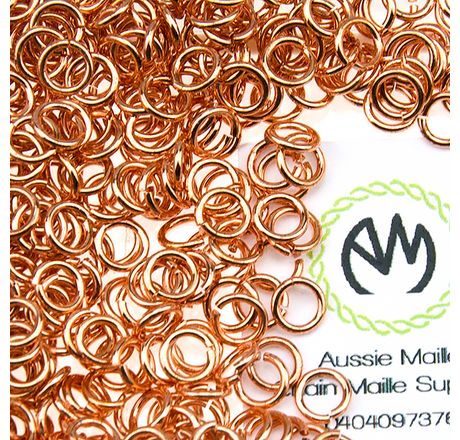

Copper 16G

RING INFORMATION

  • Ring Count:
    See Table

  • Wire Temper:
    Hard

  • Alloy:
    100% Copper

  • Ease of Use:
    Easy

  • Will it Tarnish:
    Yes.

Copper 16AWG (1.2mm)




$1.90 inc GST

Out-of-stock

Please, select one

JMP:CU:1.2

Sold in 10 gram bags


Wound, cut and tumbled by Aussie Maille.  We use a very small blade (0.008" thick) to ensure that we remove as little material as possible giving you the best ring that we can.

Orders of 5 or more bags will be packaged in bulk bags unless requested otherwise.

Jump Ring Stats:

Metric

Ring ID Actual ID Actual AR Ring Count
3.50mm 3.69mm 3.08 68
3.75mm 3.80mm 3.17 64
4.00mm 4.11mm 3.43 60
4.25mm 4.43mm 3.69 55
4.50mm 4.68mm 3.90 52
4.75mm 4.95mm 4.13 51
5.00mm 5.15mm 4.29 50
5.25mm 5.42mm 4.52 48





Ring ID Actual ID Actual AR Ring Count
5.50mm 5.68mm 4.73 46
5.75mm 5.86mm 4.88 44
6.00mm 6.19mm 5.16 43
6.25mm 6.33mm 5.28 41
6.50mm 6.66mm 5.55 40
6.75mm mm   39
7.00mm 7.18mm 5.98 38
7.50mm 7.62mm 6.35 35



Imperial

Ring ID Actual ID Actual AR Ring Count
5/32"(3.97mm) 4.07mm
11/64" (4.37mm) 4.47mm
3/16" (4.76mm) 4.87mm
13/64" (5.16mm) 5.19mm
7/32" (5.56mm) 5.64mm
15/64" (5.95mm) 6.14mm
1/4" (6.35mm) 5.56mm
5/16" (7.94mm) 8.13mm

How to Use this Table:

Ring ID is the size of the mandrel that was used to make the ring.

Actual Ring ID is the measured Internal Diameter of a closed jump ring (this takes springback and kerf into consideration).

Actual AR is the Aspect Ratio that was calculated using the Actual Ring ID.

Ring Count is the approximate number of rings in the standard bag size.



Please note:  if there is a ring size you need that you don't see listed, please contact us to arrange for a custom listing.

To help you with some ideas of weaves you can create we have listed some here that will work with this jump ring size.

For a more complete listing of weaves and their statistics please see our Maille Library.

Weave Names Metric Imperial

Jens Pind Linkage

3.75mm



Byzantine
European 4in1
Double Vision

4.25mm

5/32"

Double Spiral
Box Chain
Full Persian 6in1

6.25mm

1/4"
